4 stage of injection molding

Injection:

In the Injection stage, the material—often plastic in the case of most injection molding processes—is first fed into a heated barrel, where it is melted and turned into a liquid. The material is then forced into the mold cavity through a nozzle, using a screw or plunger mechanism that applies high pressure. The high pressure ensures that the molten material flows completely into every detail of the mold, filling it up entirely.

The speed and pressure at which the material is injected are important factors that influence the quality of the finished part, as too little pressure may result in incomplete mold filling, while too much pressure could cause defects like flash or warping. Once the material fills the cavity, the mold can proceed to the cooling stage.

Cooling:

The Cooling stage is crucial because it determines the final shape, strength, and appearance of the molded part. After the mold is filled with the molten material, it needs time to cool and solidify before the part can be ejected. The cooling time varies depending on several factors:

Material Type: Different materials have different cooling rates. For instance, thermoplastics like polyethylene cool faster than thermosets like phenolic resins. Materials with higher thermal conductivity tend to cool quicker as well.

Part Thickness: Thicker parts take longer to cool because the heat has to travel further from the center of the part to the outer surface. Thinner parts will cool more quickly.

Mold Design: The mold itself plays a big role. Molds with better heat transfer (such as those with cooling channels designed to help remove heat) will allow the part to cool faster and more evenly, which helps in reducing defects like warping.

Cooling Rate: Cooling too quickly can cause internal stresses in the material, leading to issues like cracks or shrinkage. On the other hand, cooling too slowly might result in longer cycle times, reducing efficiency.

It's a delicate balance, as proper cooling ensures that the part holds its dimensions and doesn’t warp or deform. Manufacturers typically use a cooling curve to optimize the process and minimize production times while ensuring high-quality results.

Mold Opening

The stage is all about releasing the part safely and smoothly after it has cooled and solidified. Here’s how it works:

Mold Opening: Once the part has cooled sufficiently, the two halves of the mold (the core and cavity) are separated. This is done by the mold's opening mechanism, which could be powered by hydraulic, pneumatic, or mechanical systems, depending on the type of injection molding machine.

Ejection Mechanism: Most molds are equipped with an ejector system (often using ejector pins) that helps push the part out of the mold. These pins are usually located in the mold’s movable half. When the mold opens, the ejector pins or other mechanisms press against the part to push it out. The design of the ejector pins is crucial to avoid damaging delicate or complex parts, as they need to push the part in a way that won’t cause deformation or marks.

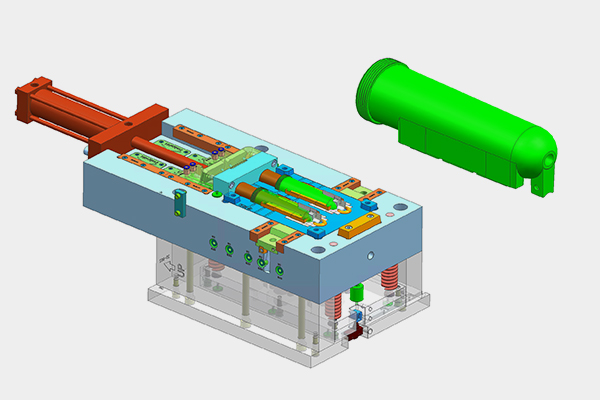

Mold Design Considerations: The mold must be designed with specific features, like draft angles (slight angles on the part’s surface) to allow easier removal. If a part has intricate geometry or undercuts (features that can’t be released directly from a mold), the mold might include side actions, lifters, or sliders to allow the part to be ejected without damage.

Part Handling: Once ejected, the part might be automatically removed using robotic arms or manually, depending on the complexity and size of the part. At this point, the part may be ready for secondary operations like trimming or assembly.

Ejection

The Ejection stage is the last step where the part is removed from the mold after it has cooled and solidified. This is where the mold’s design and ejection system really come into play to ensure the part is safely and efficiently released. Here’s a closer look:

Ejector Pins: The most common ejection mechanism involves ejector pins, which are small rods positioned in the mold. When the mold opens, these pins push against the part, forcing it out of the cavity. The pins are carefully positioned to avoid leaving marks or damaging the part.

Ejection Plates: Some molds use an ejection plate, which moves the entire part forward out of the mold. This is often used for larger or more complex parts that require more force or a different type of push mechanism.

Air Ejection: In some cases, compressed air can be used to help remove parts from the mold. This is particularly useful for smaller parts or parts with thin walls that don’t require much force to eject. The air helps push the part out, reducing the risk of damage.

Complex Part Shapes: For parts with undercuts or intricate shapes, ejector systems might be more complicated. Features like side actions, lifters, or slides are used to move parts out of the mold in a way that doesn’t damage them. These additional features help with parts that can't be ejected directly in one straight line because of their geometry.

Mold Wear Considerations: Over time, the ejector pins and other ejection components may wear out due to the forces involved. Regular maintenance and proper mold design help minimize wear and tear, ensuring the process remains smooth and efficient.

After the part is ejected, it might go through post-processing steps, like trimming excess material, cleaning, or assembly, depending on its intended use.
